Muddy River Ozone Generators

Design Features:

1. All high voltage is safely contained completely within the Plasma Blo3ck©, thereby eliminating shock hazards and dirt buildup which can cause dangerous flashover. High-voltage wiring is booted and all metal grounded.
2. Advanced design eliminates the possibility of ozone leakage from the body or fittings. All non-metal materials are ozone rated.
3. Military grade conformal coating eliminates problems associated with condensation and mold, and greatly retards damage caused by accidental ozone exposure.
4. Micro Channel™design results in high-concentration, reduced high-voltage levels and more efficient operation. Concentrator or bottle feed of at least -60°F dew point, filtered, positive-pressure oxygen is required. Materials in the gap are ceramic and aluminum.
5. Ideal for ‘over-the-road’ applications. Instant-ON ozone production. -- No warm-up time.
6. Precision-machined aluminum block eliminates inefficient hot spots and facilitates operation at high pressures, as well as vacuum ride through. Only 2 psi drop with 10 LPM flow. As with any cell, the most predictable performance occurs in the positive-pressure domain. Sustained vacuum will damage cell.
7. Ozone level is automatically controlled to ± 1% from 85 to130vac, or 170v to 260vac, depending on the model.

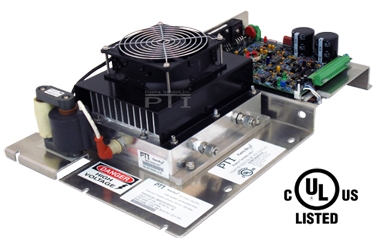

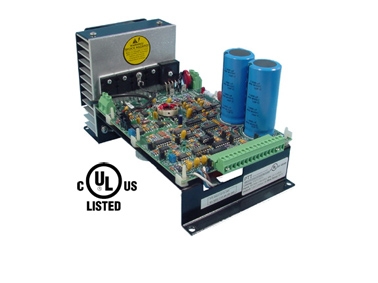

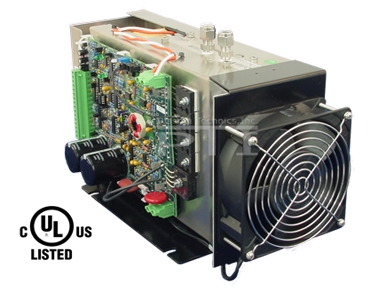

8. Pre-mounted, seasoned and tested package sub-system which includes cell, transformer, inverter and fan. Design uses the finest quality materials and machining for maximum performance and efficiency.
9.  23 kHz operating frequency for silent operation; Line voltage 120v or 240v, 50/60hz.
10. Inlet 1/4", Outlet 1/4"; both Stainless Compression fittings are standard; 3/8" or 1/4" NPT on request.
11. Pre-seasoned, calibrated and pre-adjusted to customers’ individual performance needs. Ready to install.
12. Rigorous 100% performance, as well as burn-in tests of all electricals, are conducted to ensure the highest level of product quality, reliability and consistency.
